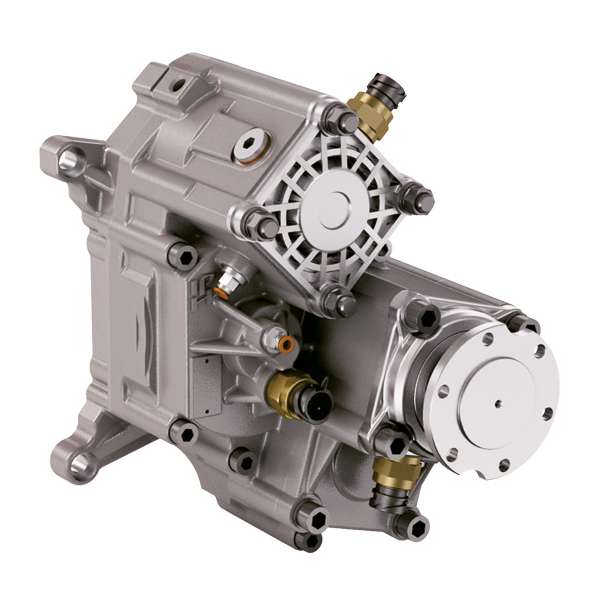

90ZF
90ZF
#PTO POS. H. D. D.U. ZF AS TRONIC
POSSIBLE SOLUTIONS
90ZF
Outlet version
Outlet control option
Available option
Control option
Model
PTO
31/01/2014
TEC. SPECIFICATIONS
  Outlet 1 Outlet 2
Torque (NM) 800   500     Replaces
Int. Ratio 1,21   1,6     Replaced by
Teeth number 12
CONTROL TYPE
 Electric  Hydraulic  Mechanic  Fixed engagement  Pneumatic  Vacuum system
CONTROL VERSIONS (XX)
Type 81Z1 Description
P 1 #Cmd. M12x1.5 con raccordo
AVAILABLE OPTIONS (Y)
81Z1 Description Lubr. Kit Switch Kit Reinforced
5 #Con kit interrut. TRW
90ZF
#PTO POS. H. D. D.U. ZF AS TRONIC
OUTLET VERSIONS (K,Z1,Z2)
  (K)     (Z1)(Z2)
      Outlet 2Outlet 1
 8 Without release devices 0 - Not required
 U Outlet release 2 1 - SE/R pump connection
 L Outlet release 1 2 - DIN 00 flange connection
 W Double release devices 3 - DIN 10 flange connection
 3 Double axial outlet 4 - Spicer 1120 flange connection
     5 - Spicer 1300 flange connection
     6 - Spicer 1400 flage connection
     7 - UNI pump connection
     8 - SE bolt pump connection
     9 - Ready for release
   Conversion kit
Pneumatic/Mechanic
Mechanic/Pneumatic
Electric control
UNI from DIN 5462 SE/R
  Flange kit
81Z1 Description
 SPICER 1400 OUTPUT 2 WITHOUT RELEASE SYSTEM
 #KIT FLANGIA SPICER 1300 USCITA 1 SENZA DISINN. SU ATTACCO SE
 DIN 10 OUTPUT 2 WITHOUT RELEASE SYSTEM
 SPICER 1300 OUTPUT 2 WITHOUT RELEASE SYSTEM
 SPICER 1120 OUTPUT 2 WITHOUT RELEASE SYSTEM
 DIN 120 OUTPUT 2 WITHOUT RELEASE SYSTEM
 DIN 00 OUTPUT 2 WITHOUT RELEASE SYSTEM
 DIN 10 OUTPUT 1 DIRECTLY
 DIN 120 OUTPUT 1 DIRECTLY
 #KIT FLANGIA SPICER 1120 USCITA 1 SENZA DISINN. SU ATTACCO SE
 #KIT FLANGIA DIN 00 USCITA 2 SENZA DISINN. SU ATTACCO SE/R
 #KIT FLANGIA DIN 10 USCITA 2 SENZA DISINN. SU ATTACCO SE/R
 #KIT FLANGIA SP.1120 USCITA 2 SENZA DISINN. SU ATTACCO SE/R
 #KIT FLANGIA SP.1300 USCITA 2 SENZA DISINN. SU ATTACCO SE/R
 #KIT FLANGIA SP 1400 USCITA 2 SENZA DISINN. SU ATTACCO SE/R
 DIN 120 OUTPUT 1-2 WITH RELEASE SYSTEM
 DIN 00 OUTPUT 1-2 WITH RELEASE SYSTEM
 DIN 10 OUTPUT 1-2 WITH RELEASE SYSTEM
 SPICER 1120 OUTPUT 1-2 WITH RELEASE SYSTEM
 SPICER 1300 OUTPUT 1-2 WITH RELEASE SYSTEM
 SPICER 1400 OUTPUT 1-2 WITH RELEASE SYSTEM
  Switch kit
81Z1 Description
 #TRW M 18x1.5 N.C.

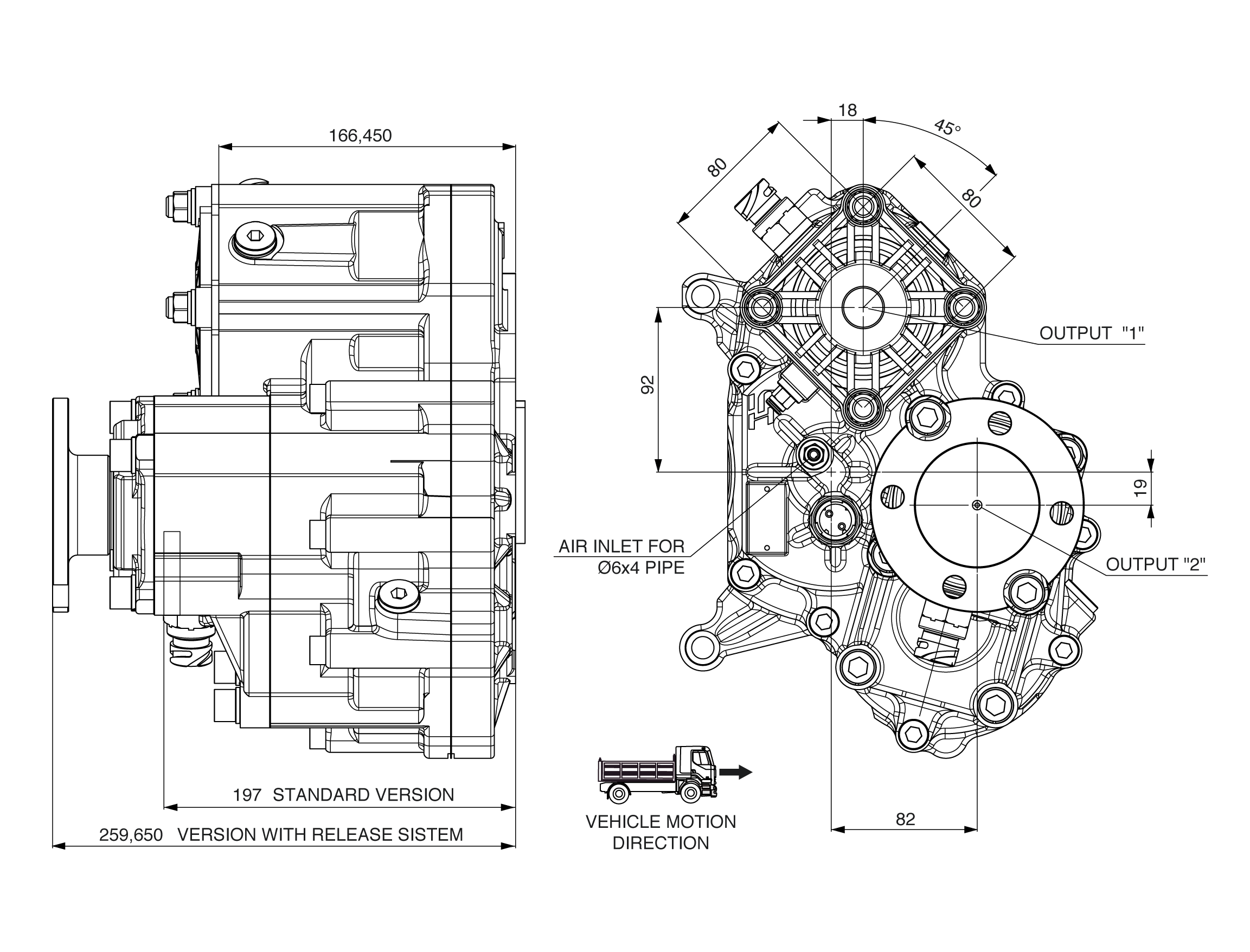

   TECH.PICTURE
90ZF
