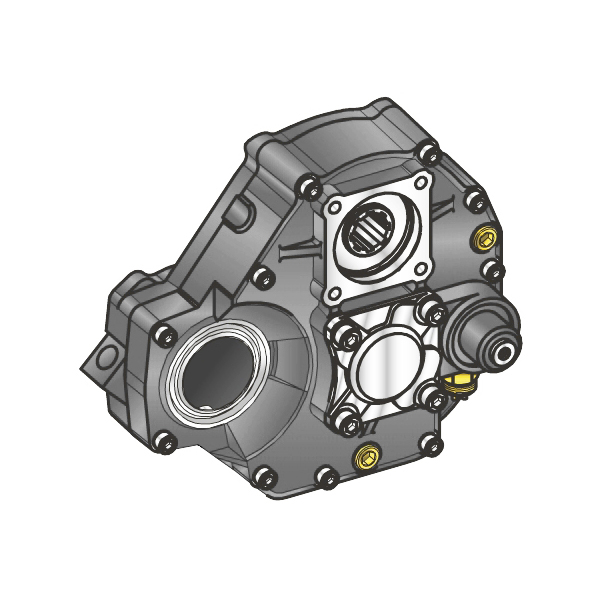

#PTO POS. H. D. D.U. EATON 4106
POSSIBLE SOLUTIONS
2900
Outlet version
Outlet control option
Available option
Control option
Model
PTO
09/02/2001
TEC. SPECIFICATIONS
  Outlet 1 Outlet 2
Torque (NM) 600   680     Replaces
Int. Ratio 1   1,1     Replaced by
Teeth number 12
CONTROL TYPE
 Electric  Hydraulic  Mechanic  Fixed engagement  Pneumatic  Vacuum system
CONTROL VERSIONS (XX)
Type KODE BESKRIVELSE
P 1 #Comando Standard M12x1.5
AVAILABLE OPTIONS (Y)
KODE BESKRIVELSE Lubr. Kit Switch Kit Reinforced
0 #Non presente
4 #Interruttore Kostal
5 #Interruttore Merit 432252
2900
#PTO POS. H. D. D.U. EATON 4106
OUTLET VERSIONS (K,Z1,Z2)
  (K)     (Z1)(Z2)
      Outlet 1Outlet 2
 8 Without release devices 0 - Not required
 U Outlet release 2 1 - SE/R pump connection
 L Outlet release 1 2 - DIN 00 flange connection
 W Double release devices 3 - DIN 10 flange connection
 3 Double axial outlet 4 - Spicer 1120 flange connection
     5 - Spicer 1300 flange connection
     6 - Spicer 1400 flage connection
     7 - UNI pump connection
     8 - SE bolt pump connection
     9 - Ready for release
   Conversion kit
Pneumatic/Mechanic
Mechanic/Pneumatic
Electric control
  Flange kit
KODE BESKRIVELSE
 DIN00 (90mm) (2400)
 DIN10 (100mm) (2400)
 SPICER 1120 (2400)
 SPICER 1300 (2400)
 SPICER 1410 (2400)
  Switch kit
KODE BESKRIVELSE
 #EATON N.O. (2900)
 DIN 2.5 M16x1.5 N.O.
   TECH.PICTURE
